ARNO - монолитный осевой инструмент 2015 EN
VHM-Radiusfrser
2 Schneiden, lange Ausfhrung
для размещения заказа - info@arno-tools.ru

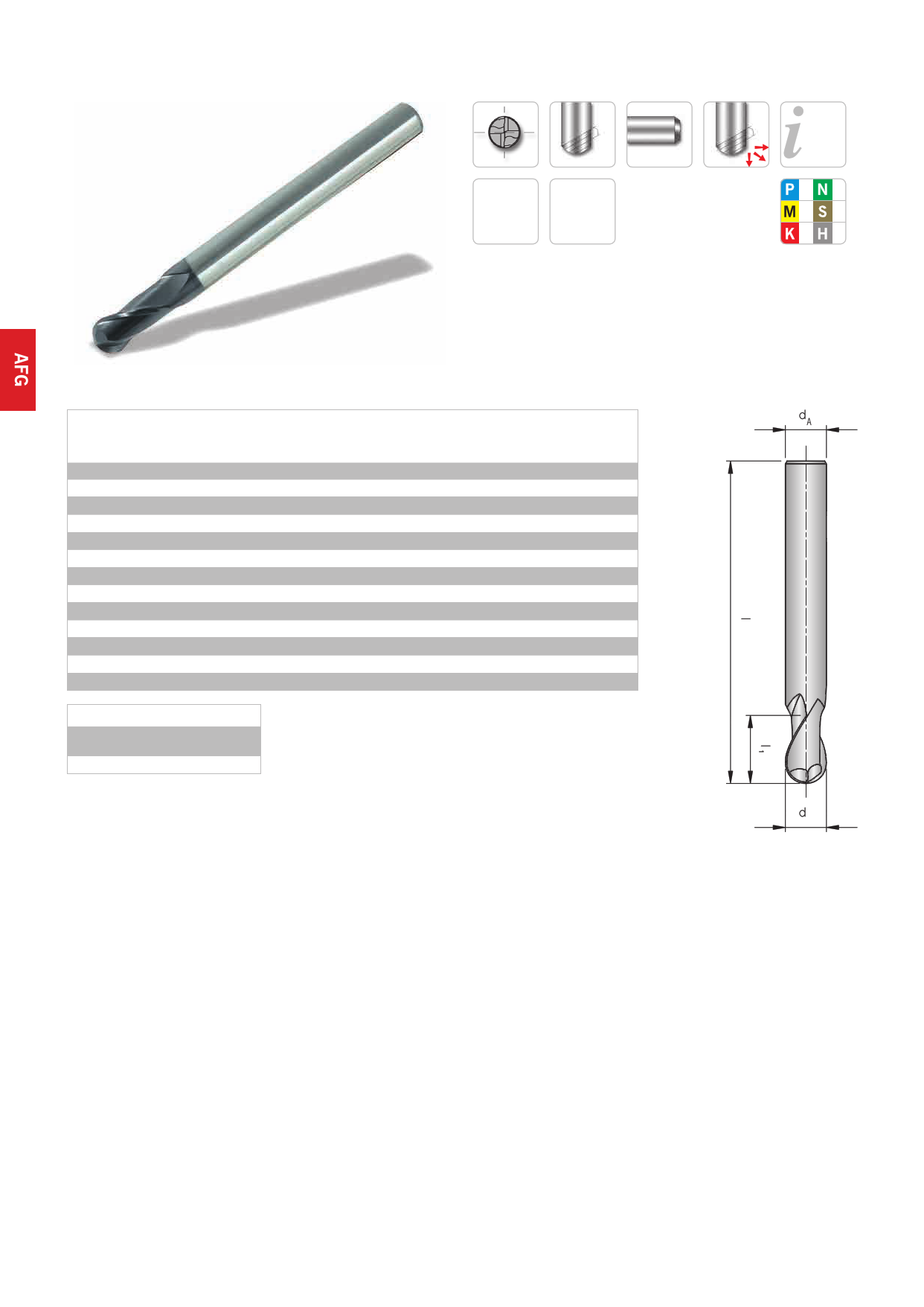

Solid carbide ball-nose end-mill
2 flutes, long design
2
TiAlN
30°
Feinstkorn
Ultra micro
granulation
HA
Seite
Page
183–192
AFG50321-...
Schaft / Shank
DIN 6535HA
d
dA
l1 l
AFG50321-020
2,0
6
5,0 50
AFG50321-030
3,0
6
8,0 60
AFG50321-040
4,0
6
8,0 70
AFG50321-050
5,0
6
10,0
80
AFG50321-060
6,0
6
12,0
90
AFG50321-080
8,0
8
14,0
100
AFG50321-100
10,0
10
18,0
100
AFG50321-120
12,0
12
22,0
110
AFG50321-140
14,0
14
26,0
110
AFG50321-160
16,0
16
30,0
140
AFG50321-180
18,0
18
34,0
140
AFG50321-200
20,0
20
38,0
160
AFG50321-250
25,0
25
50,0
180
Toleranz / Tolerance
Frser / Mill
Schaft / Shank
0
-0,03
h6
164 ARNO®-Werkzeuge | VHM-/PM-HSS Werkzeuge | Solid carbide-/PM-HSS Tools
info@arno-tools.ru
www.arno-tools.ru
= Hauptanwendung / Main application
= Nebenanwendung / Suitable
Alle Angaben in mm / Dimensions in mm
