ARNO - монолитный осевой инструмент 2015 EN
PM-HSS-Schaftfrser
2 Schneiden, lange Ausfhrung
для размещения заказа - info@arno-tools.ru

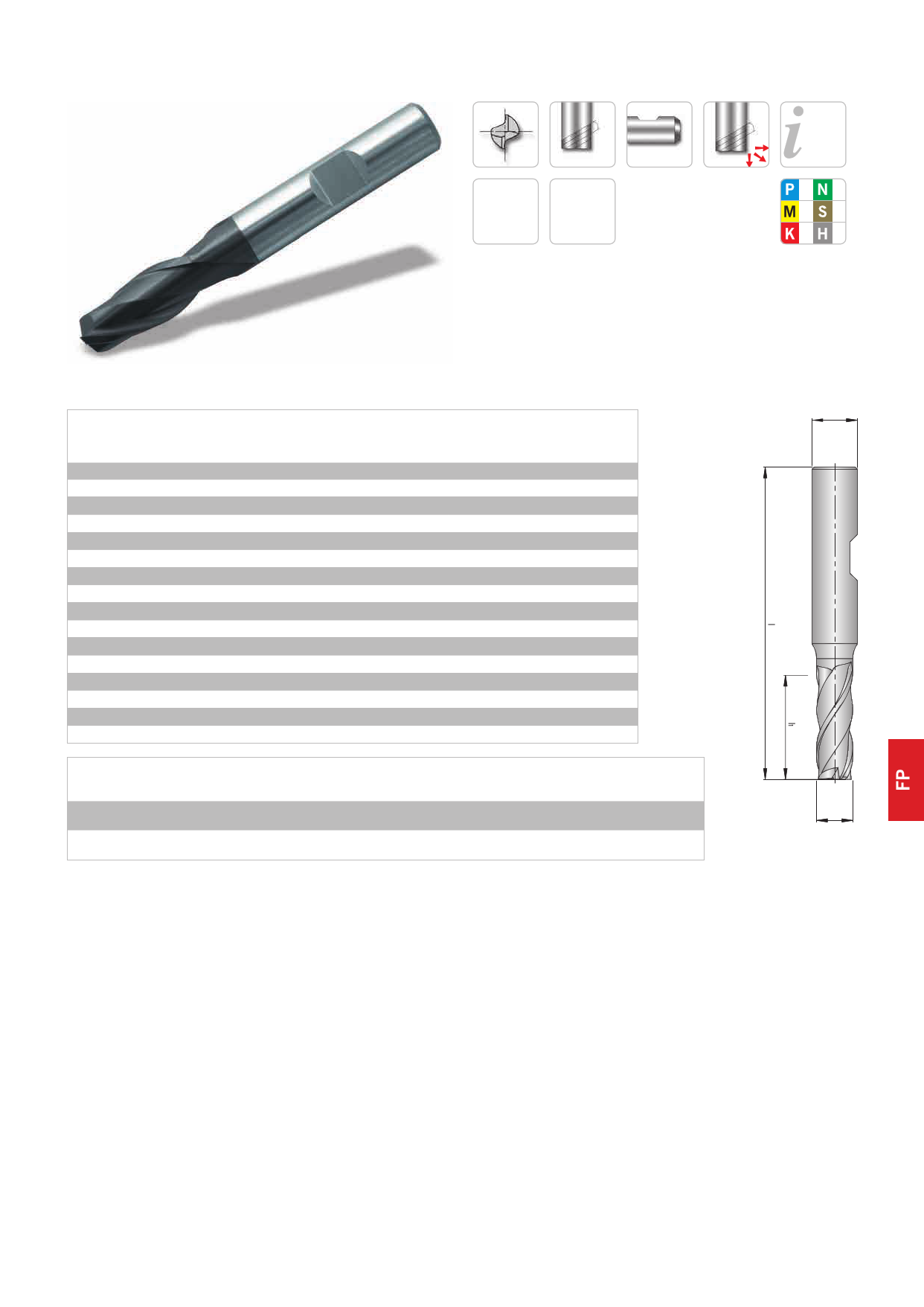

PM-HSS end-mill
2 flutes, long design
2
TiAlN
30°
PM-HSS
HB
Seite
Page
335–338
FP60121-…
Schaft / Shank
DIN 6535HB
FP60121-020
FP60121-030
FP60121-040
FP60121-050
FP60121-060
FP60121-070
FP60121-080
FP60121-090
FP60121-100
FP60121-120
FP60121-140
FP60121-160
FP60121-180
FP60121-200
FP60121-220
FP60121-250
Toleranz / Tolerance
(µm)
e8
h6
d
e8
2,0
3,0
4,0
5,0
6,0
7,0
8,0
9,0
10,0
12,0
14,0
16,0
18,0
20,0
22,0
25,0
1 -3
-14
-28
0
-6
dA
h6
l1 l
6 7 51
6 8 52
6 11 55
6 13 57
6 13 57
10 16 66
10 19 69
10 19 69
10 22 72
12 26 83
12 26 83
16 32 92
16 32 92
20 38 104
20 38 104
25 45 121
Nennwertbereich / Diameter range (mm)
>3 -6
-20
-38
0
-8
>6 -10
-25
-47
0
-9
>10 -18
-32
-59
0
-11
>18 -30
-40
-73
0
-13
dA
d
= Hauptanwendung / Main application
= Nebenanwendung / Suitable
Alle Angaben in mm / Dimensions in mm
