ARNO - монолитный осевой инструмент 2015 EN
для размещения заказа - info@arno-tools.ru
Gewindefrser ISO-Innengewinde

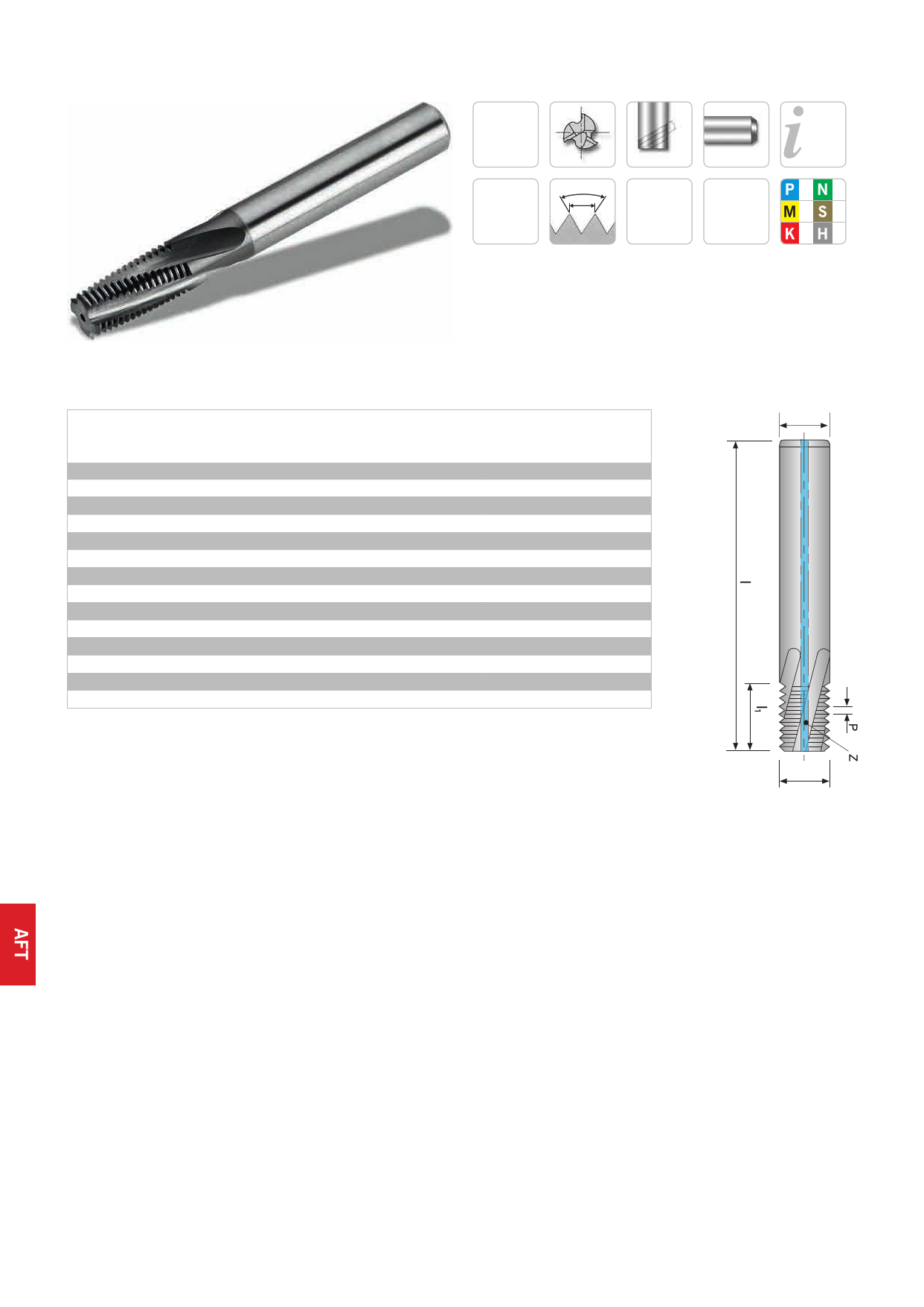

3 - 5 Schneiden, 15° Rechtsspirale, kurze Ausfhrung
Thread milling cutter ISO-internal thread
3 - 5 flutes, 15 degree helix angle, short design
MF
mit IK
with ic
3-5
60°
P
15°
TiAlN
HA
Feinstkorn
Ultra micro
granulation
Seite
Page
359–360
AFT525.0-ISO-…IK
Schaft / Shank
DIN 6535HA
AFT52530-ISO-M8X0.75IK
AFT52530-ISO-M8X1.0IK
AFT52540-ISO-M10X1.0IK
AFT52540-ISO-M12X1.0IK
AFT52540-ISO-M12X1.25IK
AFT52540-ISO-M12X1.5IK
AFT52540-ISO-M14X1.0IK
AFT52540-ISO-M14X1.5IK
AFT52540-ISO-M16X1.0IK
AFT52540-ISO-M16X1.5IK
AFT52550-ISO-M18X1.0IK
AFT52550-ISO-M18X1.5IK
AFT52550-ISO-M20X1.0IK
AFT52550-ISO-M20X1.5IK
GP
Gewinde Steigung
d
dA
l1
Thread
Pitch
l
M8
0,75
6,00
M8
1,00
6,00
6
12,75
57
6
13,00
57
M10 1,00 8,00
8
16,00
63
M12
1,00
9,50
10 19,00 72
M12
1,25
9,50
10 18,75 72
M12
1,5 9,50
10 19,50 72
M14
1,00
10,00
10
22,00
83
M14
1,5 10,00
10 22,50 83
M16
1,00
12,00
12
25,00
83
M16
1,5 12,00
12 25,50 83
M18
1,00
14,00
14
28,00
92
M18
1,5 14,00
14 28,50 92
M20
1,00
16,00
16
31,00
92
M20
1,5 16,00 16
31,50
92
z
3
3
4
4
4
4
4
4
4
4
5
5
5
5
dA
d
348 ARNO®-Werkzeuge | VHM-/PM-HSS Werkzeuge | Solid carbide-/PM-HSS Tools
info@arno-tools.ru
www.arno-tools.ru
= Hauptanwendung / Main application
= Nebenanwendung / Suitable
Dimensions in mm
