ARNO - монолитный осевой инструмент 2015 EN
VHM-Radiusfrser
2 Schneiden, lange Ausfhrung
для размещения заказа - info@arno-tools.ru

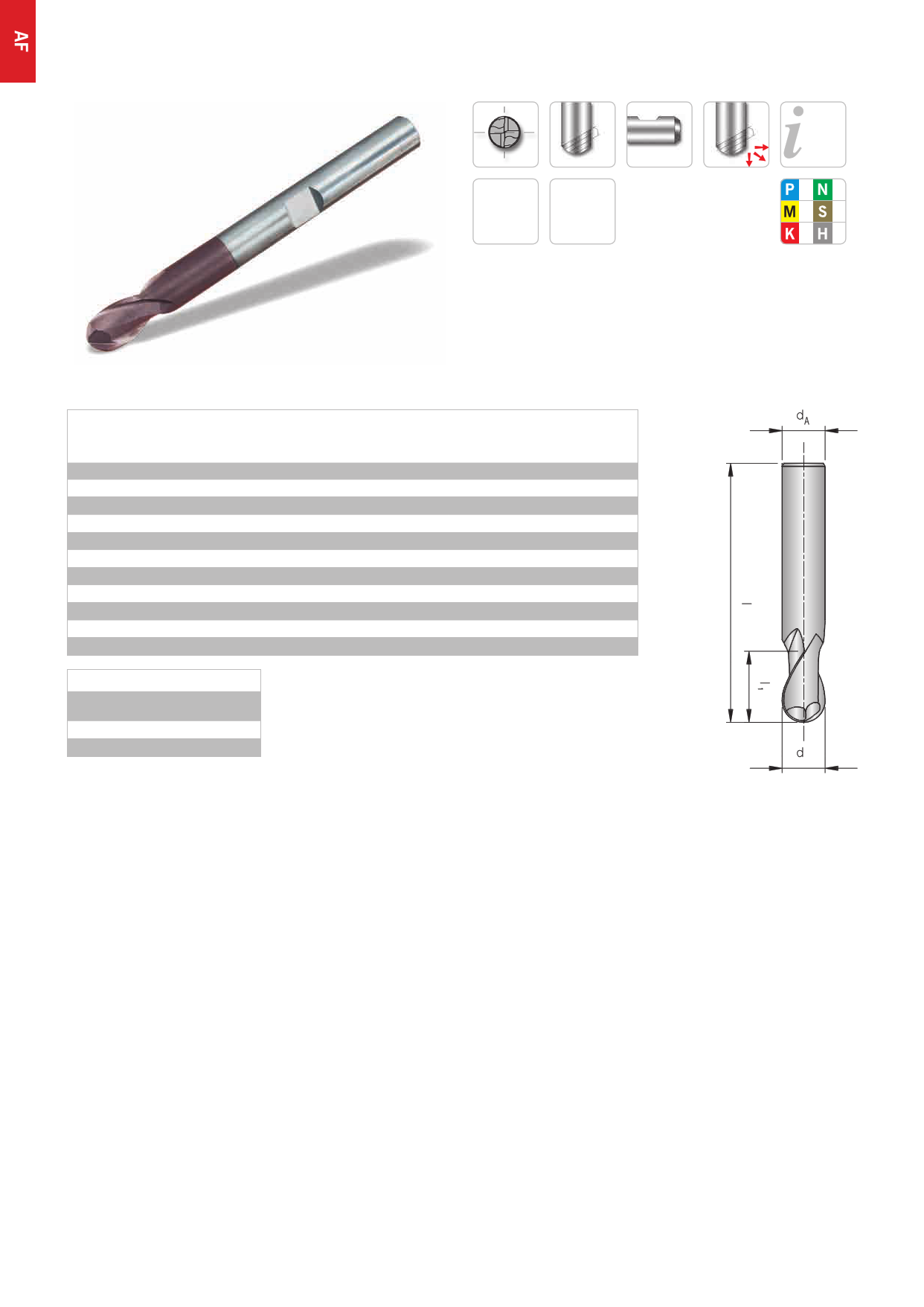

Solid carbide ball-nose end-mill
2 flutes, long design
2
TiAlN
30°
Feinstkorn
Ultra micro
granulation
HB
Seite
Page
54–61
AF60321-…
Schaft / Shank
DIN 6535HB
AF60321-030
AF60321-040
AF60321-050
AF60321-060
AF60321-080
AF60321-100
AF60321-120
AF60321-140
AF60321-160
AF60321-180
AF60321-200
Toleranz / Tolerance
Frser / Mill
Radius / Radius
Schaft / Shank
d
3,0
4,0
5,0
6,0
8,0
10,0
12,0
14,0
16,0
18,0
20,0
0
-0,03
± 0,02
h6
dA
6,0
6,0
6,0
6,0
8,0
10,0
12,0
14,0
16,0
18,0
20,0
l1
7,0
8,0
10,0
10,0
16,0
19,0
22,0
22,0
26,0
26,0
32,0
l
57
57
57
57
63
72
83
83
92
92
104
