ARNO - монолитный осевой инструмент 2015 EN

VHM-Schruppfrser

3 - 6 Schneiden, lange Ausfhrung

для размещения заказа - info@arno-tools.ru

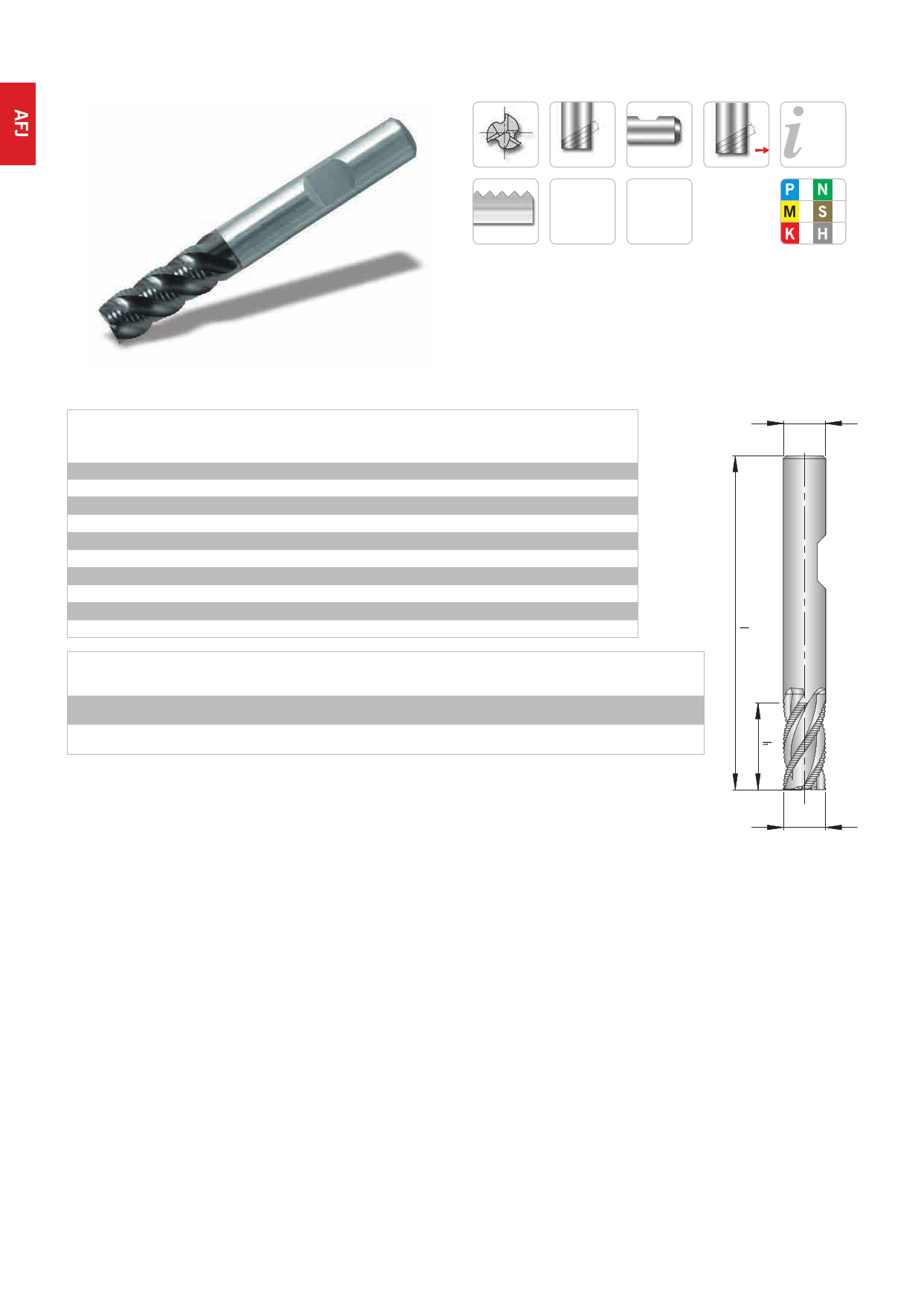

Solid carbide roughing end-mill

3 - 6 flutes, long design

3-6

Fein / fine

45°

TiAlN

HB

Feinstkorn

Ultra micro

granulation

Seite

Page

67–74

AFJ619.1-…

Schaft / Shank

DIN 6535HB

AFJ61931-040

AFJ61941-050

AFJ61941-060

AFJ61941-080

AFJ61941-100

AFJ61941-120

AFJ61941-140

AFJ61951-160

AFJ61961-200

AFJ61961-250

Toleranz / Tolerance

(µm)

h10

h6

d

h10

4,0

5,0

6,0

8,0

10,0

12,0

14,0

16,0

20,0

25,0

1-3

0

-40

0

-6

dA

h6

l1

lz

6 11 57 3

6 13 57 4

6 16 57 4

8 16 63 4

10 22 72 4

12 26 83 4

14 26 83 4

16 32 92 5

20 38 104 6

25 45 121 6

Nennwertbereich / Diameter range (mm)

>3-6

0

-48

0

-8

> 6 - 10

0

-58

0

-9

> 10 - 18

0

-70

0

-11

> 18 - 30
