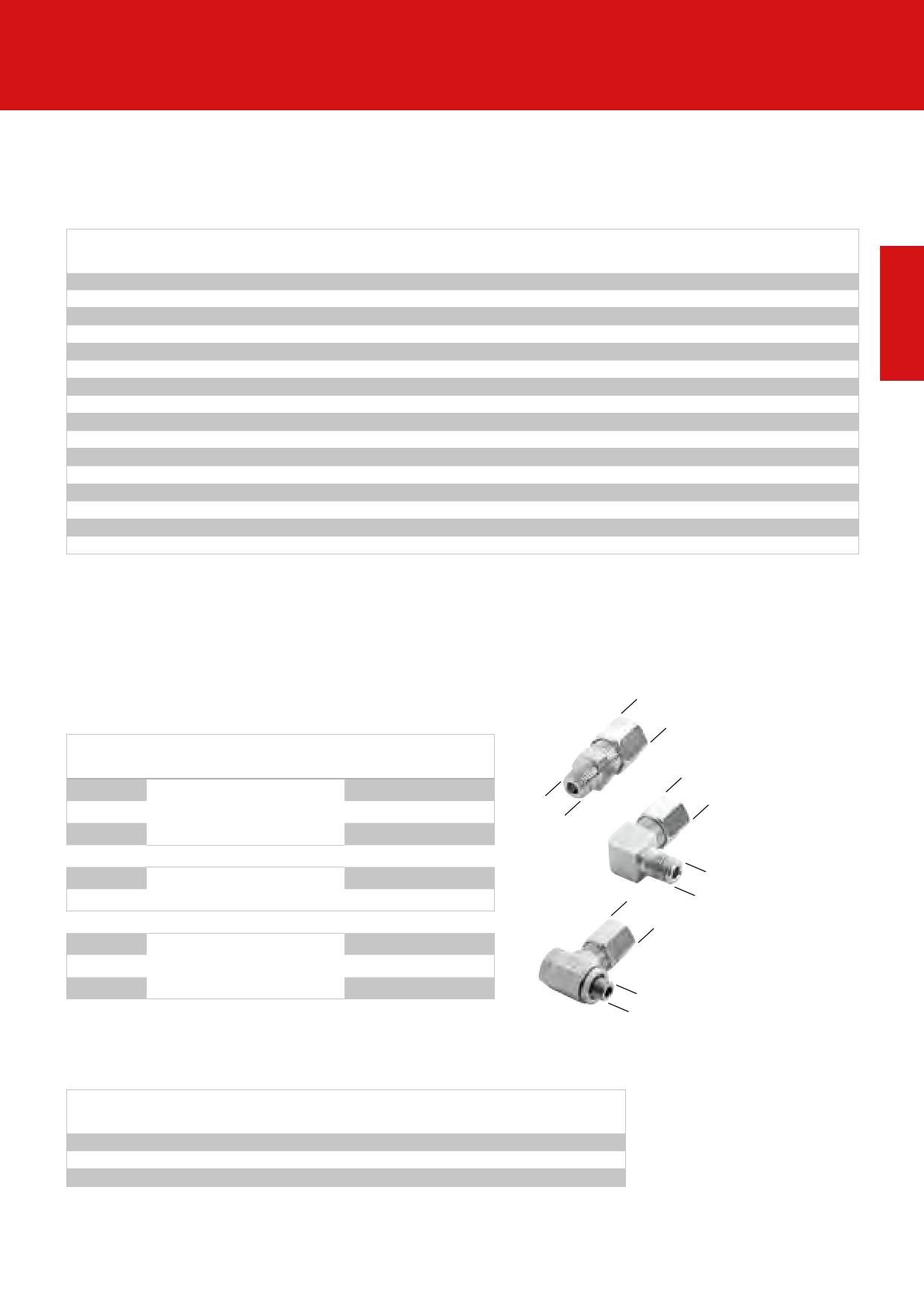

Monoblockhalter SA
Monoblock holders
Utensili monoblocco
Monoblockhalter mit Innenkhlung ACS1 von hinten
Monoblock holder with through tool coolant ACS1 access from the back
Utensile monoblocco con adduzione interna ACS1 posteriore
Bezeichnung
Designation
Articolo
Gewinde 1 Gewinde 2
EB ET Dmax DR
h
b
L
L4 KL KT Thread 1 Thread 3 PG 37
Filetto 1 Filetto 4
HSA 1616L-SA2402-32-ACS1-H3
2,0 16,0 32 – 16 16 125
38 20 G 1/4"
–
HSA 1616R-SA2402-32-ACS1-H3 2,0 16,0 32 – 16 16 125
38 20 G 1/4"
–
HSA 1616L-SA2403-32-ACS1-H3
3,0 16,0 32 – 16 16 125 – 38 20
G 1/4"
–
HSA 1616R-SA2403-32-ACS1-H3
3,0 16,0 32 –
16 16 125 – 38 20
G 1/4"
–
HSA 1616L-SA2403-44-ACS1-H3
3,0 22,0 44 61 16 16 125 – 45 20
G 1/4"
–
HSA 1616R-SA2403-44-ACS1-H3
3,0 22,0 44 61 16 16 125 – 45 20
G 1/4"
–
HSA 2020L-SA24025-44-ACS1-H3 2,5 22,0 44 61 20 20 125
––
G 1/4"
–
HSA 2020R-SA24025-44-ACS1-H3 2,5 22,0 44 61 20 20 125
––
G 1/4"
–
HSA 2020L-SA2403-32-ACS1-H3 3,0 16,0 32 – 20 20 125 – – –
G 1/4"
–
HSA 2020R-SA2403-32-ACS1-H3 3,0 16,0 32 – 20 20 125 – – –
G 1/4"
–
HSA 2020L-SA2403-44-ACS1-H3 3,0 22,0 44 61 20 20 125 – – –
G 1/4"
–
HSA 2020R-SA2403-44-ACS1-H3 3,0 22,0 44 61 20 20 125 – – –
G 1/4"
–
HSA 2020L-SA3503-52-ACS1-H3
3,0 26,0 52 68 20 20 150 – 44 30
G 1/4"
–
HSA 2020R-SA3503-52-ACS1-H3 3,0 26,0 52 68 20 20 150 – 44 30
G 1/4"
–
HSA 2020L-SA3503-65-ACS1-H3
3,0 32,5 65 80 20 20 150 – 50 30
G 1/4"
–
HSA 2020R-SA3503-65-ACS1-H3 3,0 32,5 65 80 20 20 150 – 50 30
G 1/4"
–
Hinweis: Zubehr muss separat bestellt werden.
Remark: Accessories must be ordered separately.
Nota: Gli accessori devono essere ordinati separatamente.
Schneideinsatz
Insert
Inserto
SA 24-20…
SA 24-20…
SA 24-30…
SA 24-30…
SA 24-30…
SA 24-30…
SA 24-25…
SA 24-25…
SA 24-30…
SA 24-30…
SA 24-30…
SA 24-30…
SA 35-30…
SA 35-30…
SA 35-30…
SA 35-30…
1
Zubehr / Accessories / Accessori
Bezeichnung
Designation
Articolo
KA 001
KA 002
KA 003
Khlmittelanschluss – gerade
Coolant supply – straight
Raccordo – dritto
A
M8x1
1/8"
1/4"
KA 004
KA 005
Khlmittelanschluss – winklig, fest
Coolant supply – angled and fixed
Raccordo – angolato
M8x1
1/8"
KA 006
KA 007
KA 008
Schwenkverschraubung
Swivelling screw-fitting
Raccordo – orientabile
M8x1
1/8"
1/4"
B
6 mm
6 mm
10 mm
6 mm
6 mm
6 mm
6 mm
10 mm
Ersatzteile / Spare parts / Ricambi
Halter
Holder
Stelo
HSA 1616... - HSA 2020...-SA24...-...-ACS1...
HSA 2020… -SA35...-52-ACS1...
HSA 2020… -SA35...-65-ACS1...
Schraube
Screw
Vite
DIN912 M5x16-12.9
DIN912 M6x20-12.9
DIN912 M6x20-12.9
B
B
A
A
B
A
Schlssel
Key
Chiave
KP 1321
KP 5421
KP 5421
Alle Angaben in mm / Dimensions in mm / Tutte le dimensioni in mm
ARNO®-Werkzeuge | Langdrehen | Auto lathes | Fantina mobile 43
