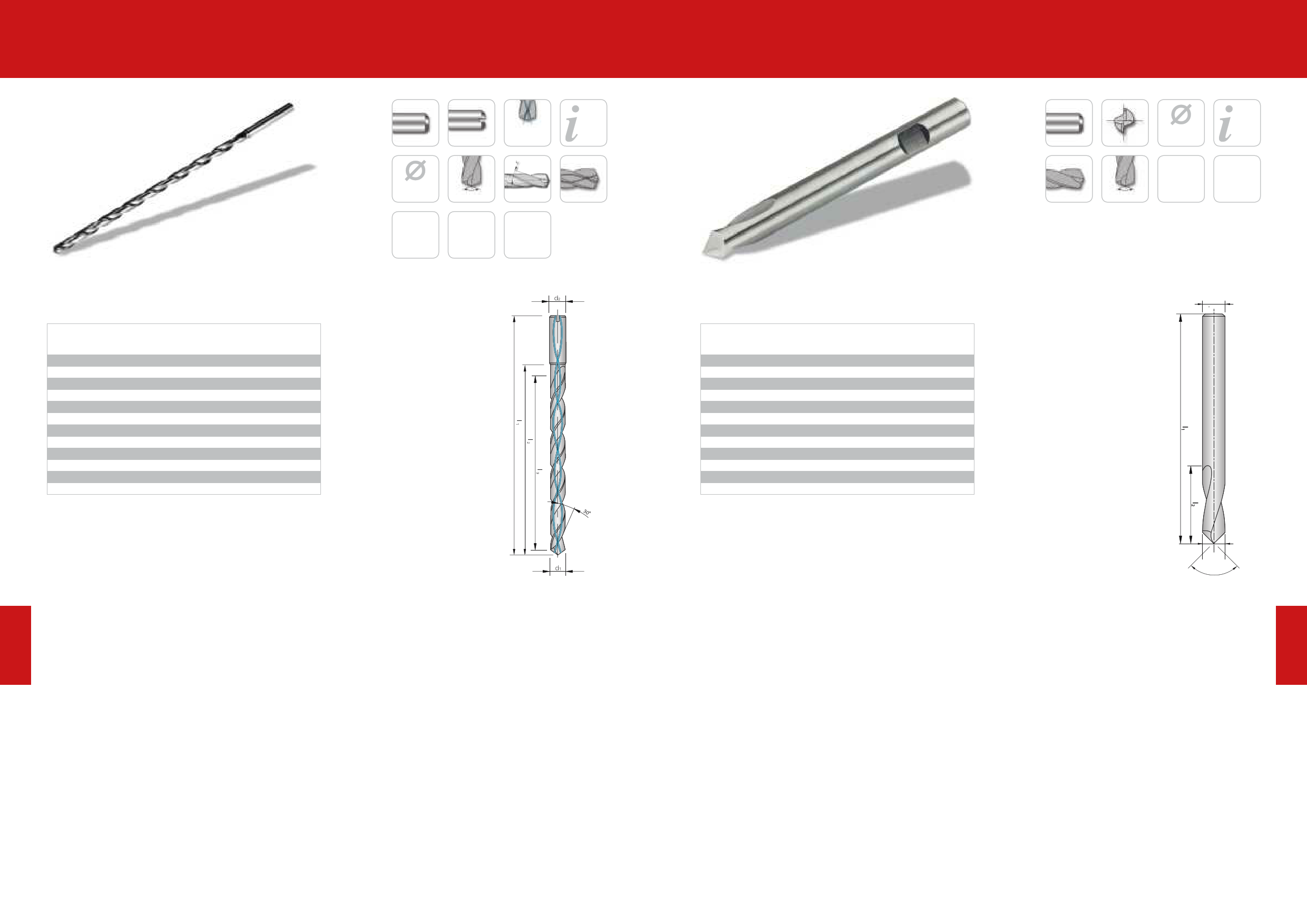

Vollhartmetall-Spiralbohrer
Solid carbide drills
Punta elicoidale in metallo duro
для размещения заказа - info@arno-tools.ru
extra lange Ausfhrung, mit Innenkhlung
Vollhartmetall NC-Anbohrer
extra long design, with through tool coolant
versione extra lunga, con raffreddamento interno
Solid carbide NC spot drills
Punta da centro in MD integrale
Seite
Page
Pagina
mit IK
249 – 256
with ic
h6 HAK con ic
20 x D Ausfhrung
Execution / Versione
Bezeichnung
Designation
Articolo
SPC0030-0600
SPC0035-0700
SPC0040-0800
SPC0045-0900
SPC0050-1000
SPC0055-1100
SPC0060-1200
SPC0070-1400
SPC0080-1600
SPC0090-1800
SPC0100-2000
SPC0120-2400
d1 d2
m7 h6
l1
3,0 3 120
3,5 4 132
4,0 4 143
4,5 5 157
5,0 5 168
5,5 6 182
6,0 6 193
7,0 7 217
8,0 8 241
9,0 9 265
10,0 10 288
12,0 12 341
l2 l3
69 60,0
81 70,0
92 80,0
104 90,0
115 100,0
127 110,0
138 120,0
161 140,0
184 160,0
207 180,0
230 200,0
276 240,0
3,0 - 12,0 mm
140°
TiAlN
Feinstkorn-Micro-Grain
Ultra micro granulation
Ultra micro grana
30°
x2D0
m7
30°
NC-Anbohrer 90°
NC spot drill 90° / Punta da centro 90°
Bezeichnung
Designation
Articolo
SPA0020-090
SPA0030-090
SPA0040-090
SPA0050-090
SPA0060-090
SPA0080-090
SPA0100-090
SPA0120-090
SPA0140-090
SPA0160-090
SPA0180-090
SPA0200-090
d1 d2
h6 h6
l1
l2
A
2,0 2 40 8 90°
3,0 3
40 10 90°
4,0 4
40 12 90°
5,0 5
50 15 90°
6,0 6
50 20 90°
8,0 8 63 22 90°
10,0
10
74
23 90°
12,0
12
83
25 90°
14,0
14
83
26 90°
16,0
16
92
28
90°
18,0
18
92
30
90°
20,0
20
104
30
90°
5
2 Schneiden, 90°
2 flutes, 90°
2 taglienti, 90°
Seite
Page
Pagina
249 – 256
h6 2 2,0 -20,0 mm
TiAlN
Feinstkorn-Micro-Grain
Ultra micro granulation
Ultra micro grana
h6 90°
d2
d1
A
5
