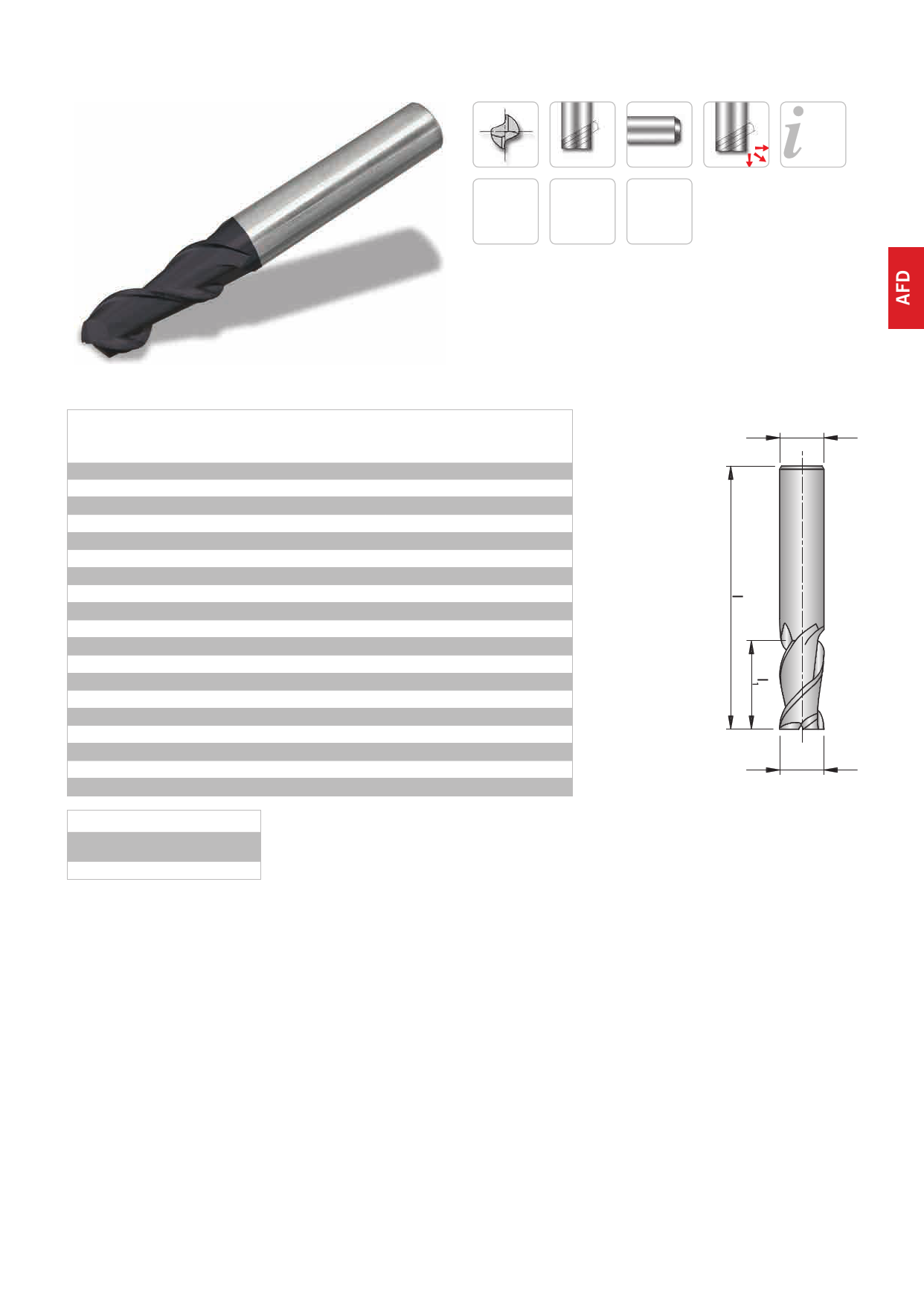

ARNO - монолитный осевой инструмент 2015 EN
VHM-Schaftfrser
2 Schneiden, kurze Ausfhrung
для размещения заказа - info@arno-tools.ru
Solid carbide end-mill
2 flutes, short design
2 45° HA
DIAMANT
DLC
Fr NE-Metalle
For non-ferrous
materials
Feinstkorn
Ultra micro
granulation
Seite
Page
131
AFD51520-…
Schaft / Shank
DIN 6535HA
AFD51520-010
AFD51520-015
AFD51520-020
AFD51520-025
AFD51520-030
AFD51520-035
AFD51520-040
AFD51520-045
AFD51520-050
AFD51520-055
AFD51520-060
AFD51520-070
AFD51520-080
AFD51520-090
AFD51520-100
AFD51520-110
AFD51520-120
AFD51520-160
AFD51520-200
d dA l1
l
1,0 4 3,0 40
1,5 4 4,0 40
2,0 4 6,0 40
2,5 4 8,0 40
3,0 6 8,0 45
3,5
6
10,0
45
4,0
6
11,0
45
4,5
6
11,0
50
5,0
6
13,0
50
5,5
6
13,0
50
6,0
6
13,0
50
7,0
8
16,0
60
8,0
8
19,0
60
9,0 10 19,0 70
10,0 10 22,0 70
11,0 12 22,0 75
12,0 12 26,0 75
16,0 16 32,0 90
20,0
20
38,0
100
Toleranz / Tolerance
Frser / Mill
Schaft / Shank
0
-0,03
h6
dA
d
DLC = fr die Bearbeitung von NE-Metallen
DLC = for machining of non-ferrous materials
Alle Angaben in mm / Dimensions in mm
