ARNO - монолитный осевой инструмент 2015 EN
VHM-Radiusfrser
2 Schneiden, lange Ausfhrung
для размещения заказа - info@arno-tools.ru

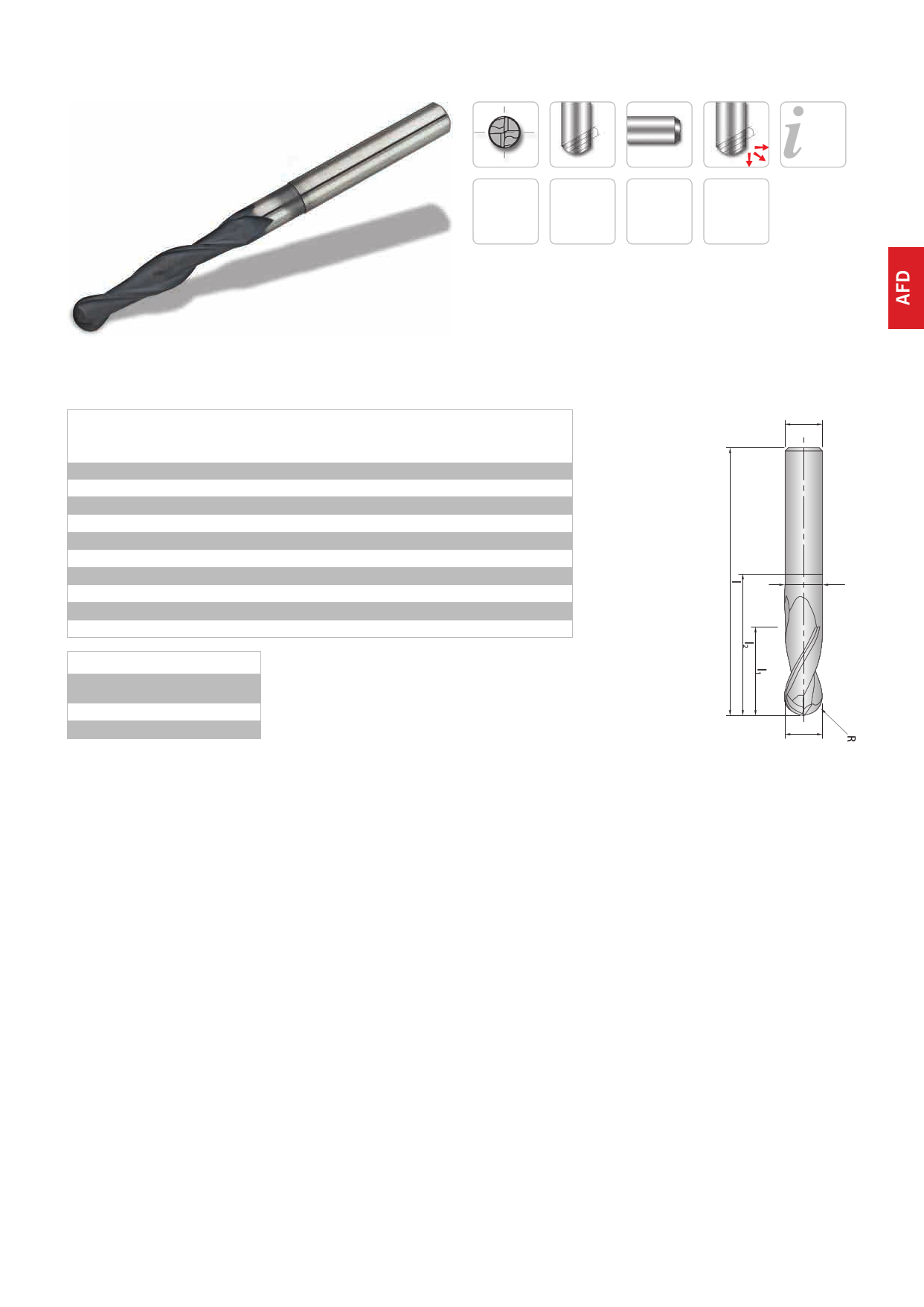

Solid carbide ball-nose end-mill
2 flutes, long design
2 30° HA
DIAMANT
DLC
Fr NE-Metalle
For non-ferrous
materials
D100
Fr Graphit
For Graphite
Feinstkorn
Ultra micro
granulation
Seite
Page
140–142
AFD51821-…
Schaft / Shank
DIN 6535HA
AFD51821-020
AFD51821-030
AFD51821-040
AFD51821-050
AFD51821-060
AFD51821-070
AFD51821-080
AFD51821-090
AFD51821-100
AFD51821-120
Toleranz / Tolerance
Frser / Mill
Radius / Radius
Schaft / Shank
d
2,0
3,0
4,0
5,0
6,0
7,0
8,0
9,0
10,0
12,0
dA d3 l1
l2
l
R
4
1,95
10,0
20,0
80
1,00
4
2,90
15,0
25,0
80
1,50
4
3,90
20,0
30,0
80
2,00
6 4,90 30,0 50,0 100 2,50
6 5,50 30,0 50,0 100 3,00
6
5,50
30,0
-
100 3,50
8
7,50
40,0
60,0
110
4,00
8
- 40,0 -
110 4,50
10
9,50
50,0
70,0
120
5,00
12
11,50
55,0
75,0
130
6,00
0
-0,03
± 0,01
h6
dA
d3
d
D100 = speziell fr die Graphitbearbeitung
DLC = fr die Bearbeitung von NE-Metallen
D100 = especially for graphite machining
DLC = for machining of non-ferrous materials
Alle Angaben in mm / Dimensions in mm
ARNO®-Werkzeuge | VHM-/PM-HSS Werkzeuge | Solid carbide-/PM-HSS Tools 115
