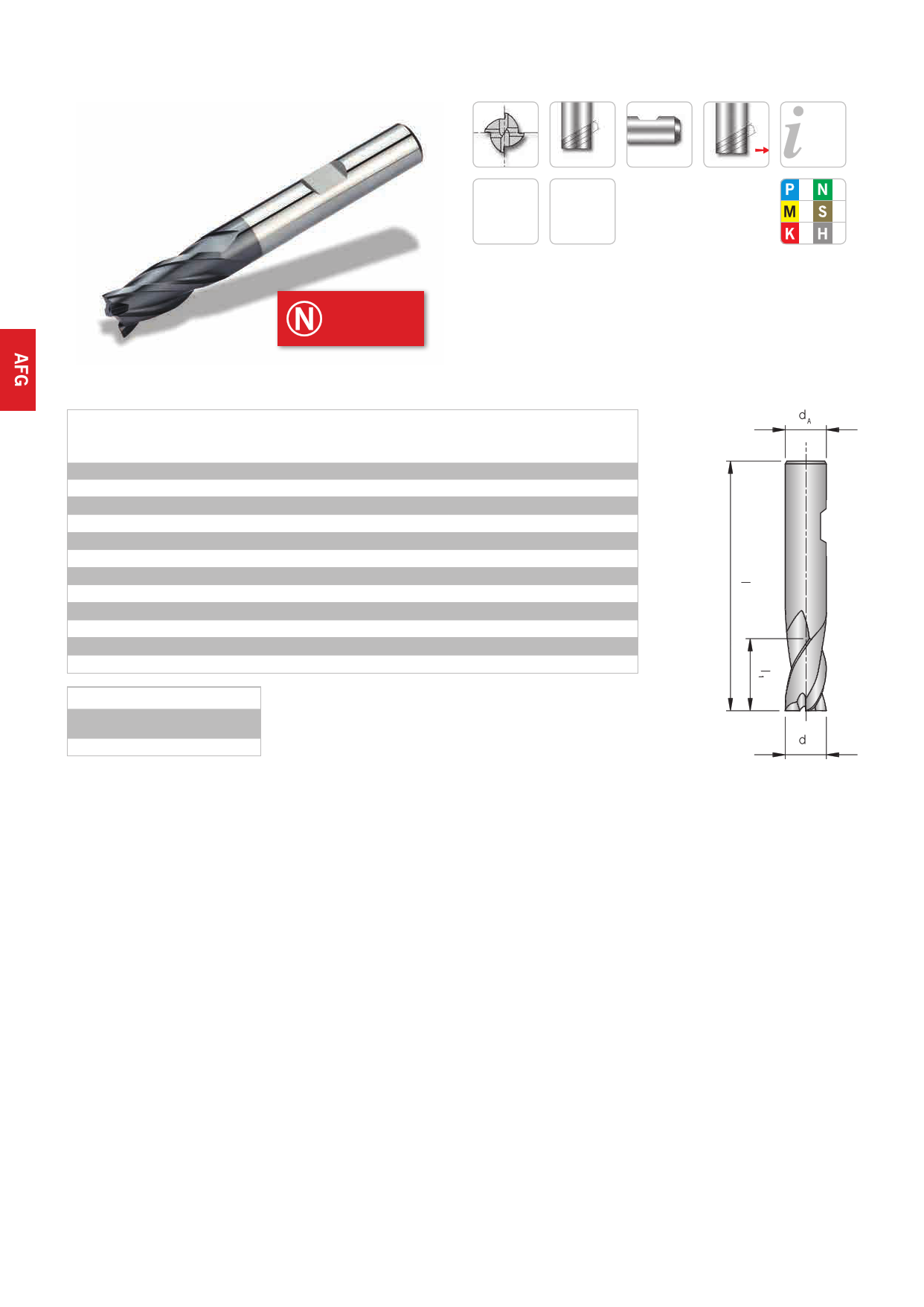

VHM-Schaftfrser
4 Schneiden, kurze Ausfhrung
для размещения заказа - info@arno-tools.ru
Solid carbide end-mill
4 flutes, short design
4
TiAlN
30°
Feinstkorn
Ultra micro
granulation
HB
AFG60140-…
Schaft / Shank
DIN 6535HB
AFG60140-020B N
AFG60140-030 N
AFG60140-040 N
AFG60140-050 N
AFG60140-060 N
AFG60140-080 N
AFG60140-100 N
AFG60140-120 N
AFG60140-140 N
AFG60140-160 N
AFG60140-180 N
AFG60140-200 N
Toleranz / Tolerance
Frer / Mill
Schaft / Shank
d
2,0
3,0
4,0
5,0
6,0
8,0
10,0
12,0
14,0
16,0
18,0
20,0
0
-0,03
h6
NEU/NEW
dA
6
6
6
6
6
8
10
12
14
16
18
20
l1
6,0
8,0
11,0
13,0
13,0
19,0
22,0
26,0
26,0
32,0
32,0
38,0
l
40
45
45
50
50
60
70
75
85
100
100
105
Seite
Page
183–192
172 ARNO®-Werkzeuge | VHM-/PM-HSS Werkzeuge | Solid carbide-/PM-HSS Tools
info@arno-tools.ru
www.arno-tools.ru
= Hauptanwendung / Main application
= Nebenanwendung / Suitable
Alle Angaben in mm / Dimensions in mm
