ARNO - монолитный осевой инструмент 2015 EN
VHM-Schaftfrser
4 Schneiden, lange Ausfhrung
для размещения заказа - info@arno-tools.ru

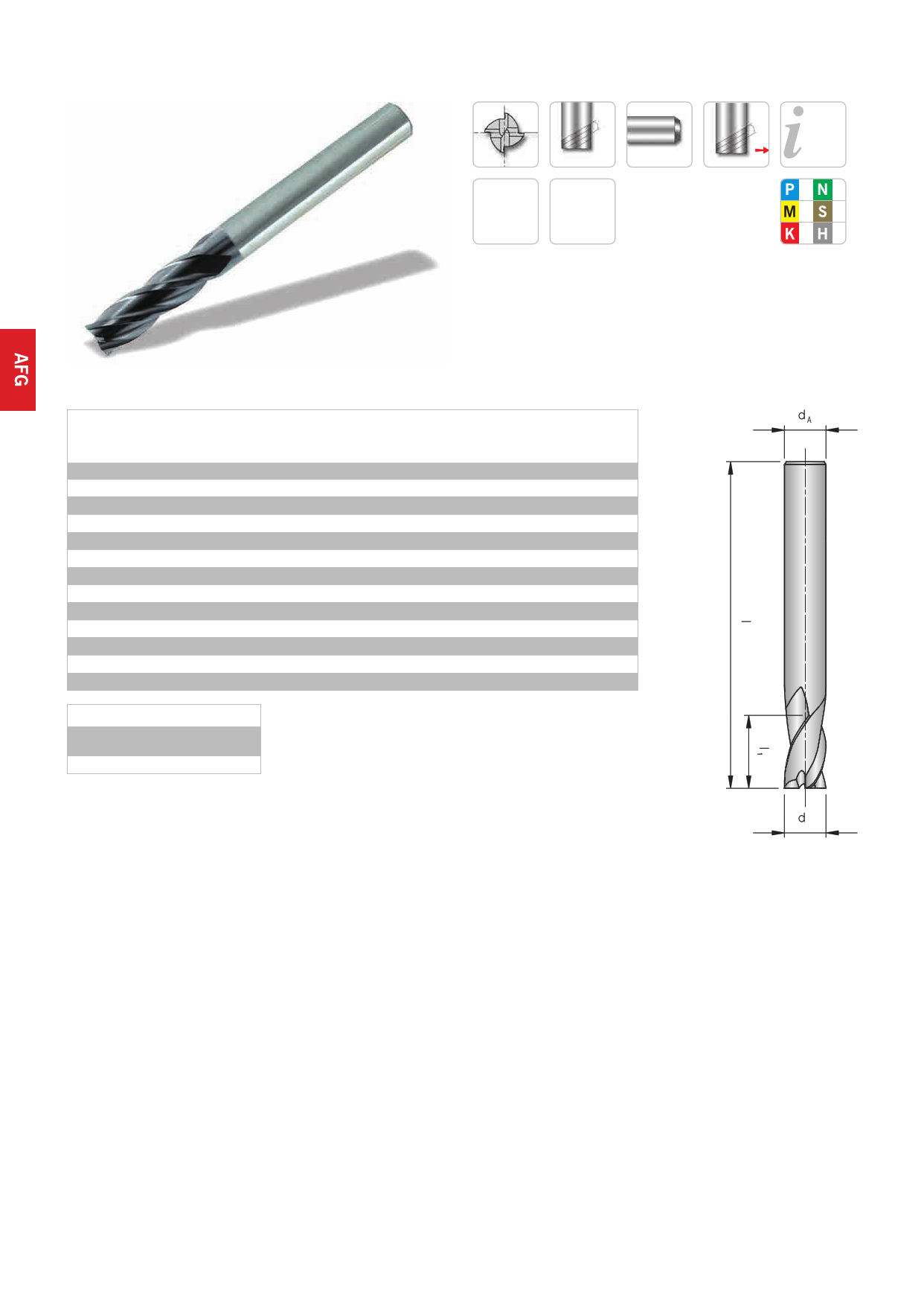

Solid carbide end-mill
4 flutes, long design
4
TiAlN
30°
Feinstkorn
Ultra micro
granulation
HA
Seite
Page
183–192
AFG50141-...
Schaft / Shank
DIN 6535HA
d
dA
l1 l
AFG50141-020
2,0
4
8,0 40
AFG50141-030
3,0
6
12,0
50
AFG50141-040
4,0
6
15,0
50
AFG50141-050
5,0
6
20,0
60
AFG50141-060
6,0
6
20,0
60
AFG50141-080
8,0
8
25,0
70
AFG50141-100
10,0
10
30,0
90
AFG50141-120
12,0
12
30,0
90
AFG50141-140
14,0
16
40,0
110
AFG50141-160
16,0
16
50,0
110
AFG50141-180
18,0
20
50,0
110
AFG50141-200
20,0
20
55,0
110
AFG50141-250
25,0
25
75,0
140
Toleranz / Tolerance
Frser / Mill
Schaft / Shank
0
-0,03
h6
