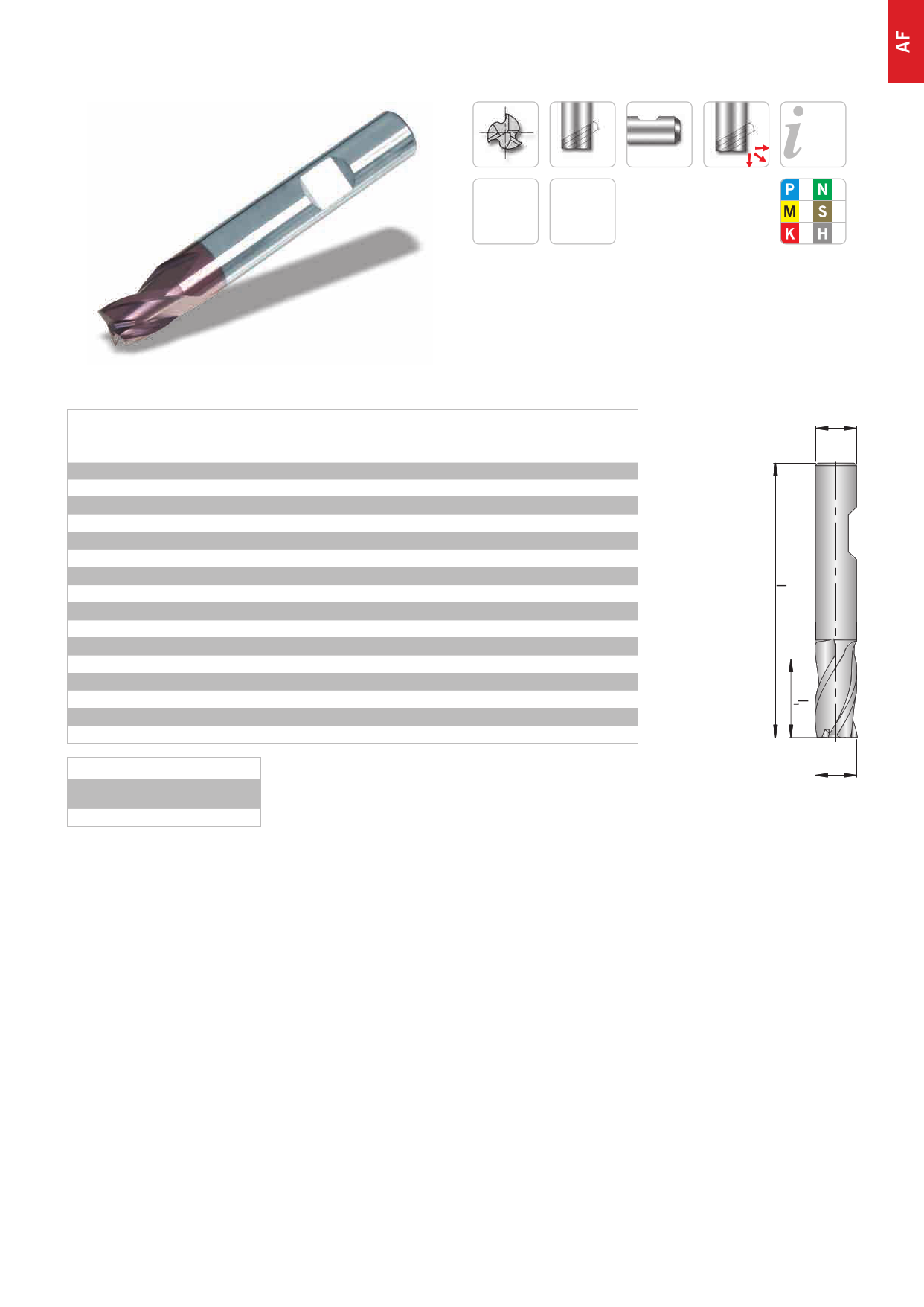

ARNO - монолитный осевой инструмент 2015 EN
VHM-Schaftfrser
3 Schneiden, kurze Ausfhrung
для размещения заказа - info@arno-tools.ru
Solid carbide end-mill
3 flutes, short design
3
TiAlN
30°
Feinstkorn
Ultra micro
granulation
HB
Seite
Page
54–61
AF61330-…
Schaft / Shank
DIN 6535HB
AF61330-020
AF61330-030
AF61330-035
AF61330-040
AF61330-045
AF61330-050
AF61330-060
AF61330-070
AF61330-080
AF61330-090
AF61330-100
AF61330-120
AF61330-140
AF61330-160
AF61330-180
AF61330-200
Toleranz / Tolerance
Frser / Mill
Schaft / Shank
d
2,0
3,0
3,5
4,0
4,5
5,0
6,0
7,0
8,0
9,0
10,0
12,0
14,0
16,0
18,0
20,0
0
-0,03
h6
dA
6,0
6,0
6,0
6,0
6,0
6,0
6,0
8,0
8,0
10,0
10,0
12,0
14,0
16,0
18,0
20,0
l1
3,0
4,0
4,0
5,0
5,0
6,0
7,0
8,0
9,0
10,0
11,0
12,0
14,0
16,0
18,0
20,0
l
50
50
50
54
54
54
54
58
58
66
66
73
75
82
84
92
dA
d
= Hauptanwendung / Main application
= Nebenanwendung / Suitable
Alle Angaben in mm / Dimensions in mm
